This tab shows a grid giving both the observed (entered data) and the predicted values for the selected model. The model used is shown in the title. If the data set comprises both lengths and weights, then both will be displayed in the grid.

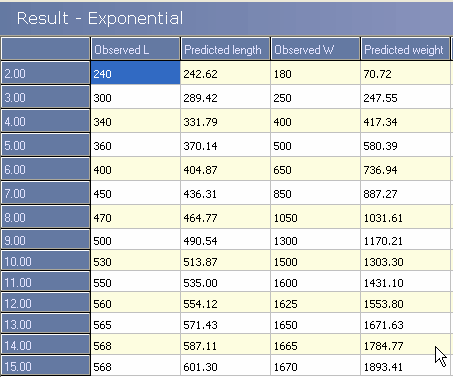

The grid below shows the output when size at age data are used. In this example both weight and length data were supplied, so the output includes both observed and predicted lengths and weights.



calculations tab





The grid below shows the output when incremental data are analysed. The two columns on the left, labelled Time and Predicted Size, present the predicted growth curve. To the right the Observed column holds the observed sizes for individual organisms from your data set. The adjacent columns on the right give the model prediction and the difference between the observed and predicted.







calculations tab incremental



To print, export or copy the grid see Print Grid and Copy Grid
